  The C1 Servo Hoist is a BGV-C1, EN 17206 and SIL3-compliant precision hoist built for demanding stages and live venues. Safety configuration: Dual electromagnetic brakes, Category 0/1 E-stop, integrated load cell, 4-point limit switches, IP65 protection, absolute encoders and position memory after power loss. Precision & control: ±1 mm positioning with fast closed-loop response and reliable position hold. Motion & acoustics: Ultra-smooth motion (25–42 m/min), adjustable speed 0.01–0.5 m/s, zero-speed hover and low noise (~68 dB). Strength & reliability: FEC G80 chain (12:1 safety) for high load strength. Paired with EtherCAT plug-and-play and Black Warrior (BW-Console + Pando 3D), it enables rapid setup and flawless synchronization of automated scenic systems — motorized props and stage modules, LED screens/video walls, motorized track and stage systems, lighting trusses, and performer flying systems — ideal for exhibitions, theaters, TV, concerts, clubs and touring shows. Core Specifications Type Servo-controlled hoist 500kg Chain Japan FEC (25m length) Voltage AC 380V 3-phase Control BW-Console + Pando 3D simulation

The BW Console revolutionizes stage automation as the first integrated control terminal combining: Industrial-grade motion control (0.1mm precision) Built-in Pando 3D simulation (virtual-to-real closed-loop workflow) Rental-optimized architecture (plug-and-play deployment) Core Advantages 1. Virtual & Real Synchronization, "Debug in 3D, Execute with Confidence" Offline Programming: Pre-visualize complex scenes in Pando 3D Virtual Rehearsals: Test cues without moving physical machinery Real-time Adjustment: On-site tweaks sync automatically with simulation 2. Tested Reliability Feature Technical Benefit Dual-mode E-stop Complies with EN 60204-1 Cat.0 (power cut) & Cat.1 (controlled stop) Fiber-optic communication 2km+ interference-free signal transmission to BW-MC™ main controller DMX512 integration Seamless triggering from lighting consoles (ArtNet/sACN optional)

Core Innovation: "Simulate with Confidence, Execute with Precision"Pando 3D revolutionizes stage automation as the first fully-integrated virtual control system, transforming physical servo axes (hoists/lifts/turntables) into programmable virtual elements for risk-free preproduction. Key Features 1. Digital Twin Technology 1:1 Axis Mapping: Mirror 256+ servo motors in virtual space Collision Prevention: Detect interference risks before load-in Artistic Preview: Visualize complex movements with lighting/media sync 2. Workflow Advantages Traditional Method Pando 3D Solution Weeks of on-site debugging offline virtual rehearsal Trial-and-error adjustments Precise first-time execution Limited previsualization Full 3D show simulation

The Intelligent Core of Black Warrior Stage Automation System System Overview Developed by YZ DITEC, the BW-MC is the central control brain for professional stage machinery, combining:✔ Multi-axis synchronous control (up to 256 axes)✔ Sub-millimeter precision (±0.5mm positioning accuracy)✔ Rental-optimized architecture (modular & scalable) Key Features 1. Advanced Motion Control EtherCAT-based topology (1ms refresh rate) Virtual axis mapping for complex trajectories 2. Intelligent Management Motor health diagnostics Temperature/load threshold alerts 3. Safety Ecosystem Triple-redundant E-stop circuits (Cat.0/1/2) Dynamic limit adjustment during operation

Precision Motion Controller for Stage Automation Product Overview The BW-DC Drive Controller is a high-performance motion control unit of the Black Warrior System, engineered by YZ DITEC for professional stage machinery. Designed to pair with the BW-MC Servo Main Controller (stage automation central processor), it delivers: Multi-axis precision control for servo hoists/winches Rapid deployment and scalable configurations for rental markets Real-time monitoring of absolute encoder servo motor Key Features Performance Safety & Control ✔ Flexible Layout: Controls multiple execution units with synchronized motion ✔ Triple-Layered Safety: Combines hardware, software, and main controller safeguards ✔ High Precision: Sub-millimeter positioning accuracy for smooth automation ✔ Built-in Safety Module: Overload protection, dual brake control, limit detection ✔ Real-Time Data: Continuous feedback on motor position, speed, and torque ✔ Panel Configuration: Local motor parameter setup and status monitoring

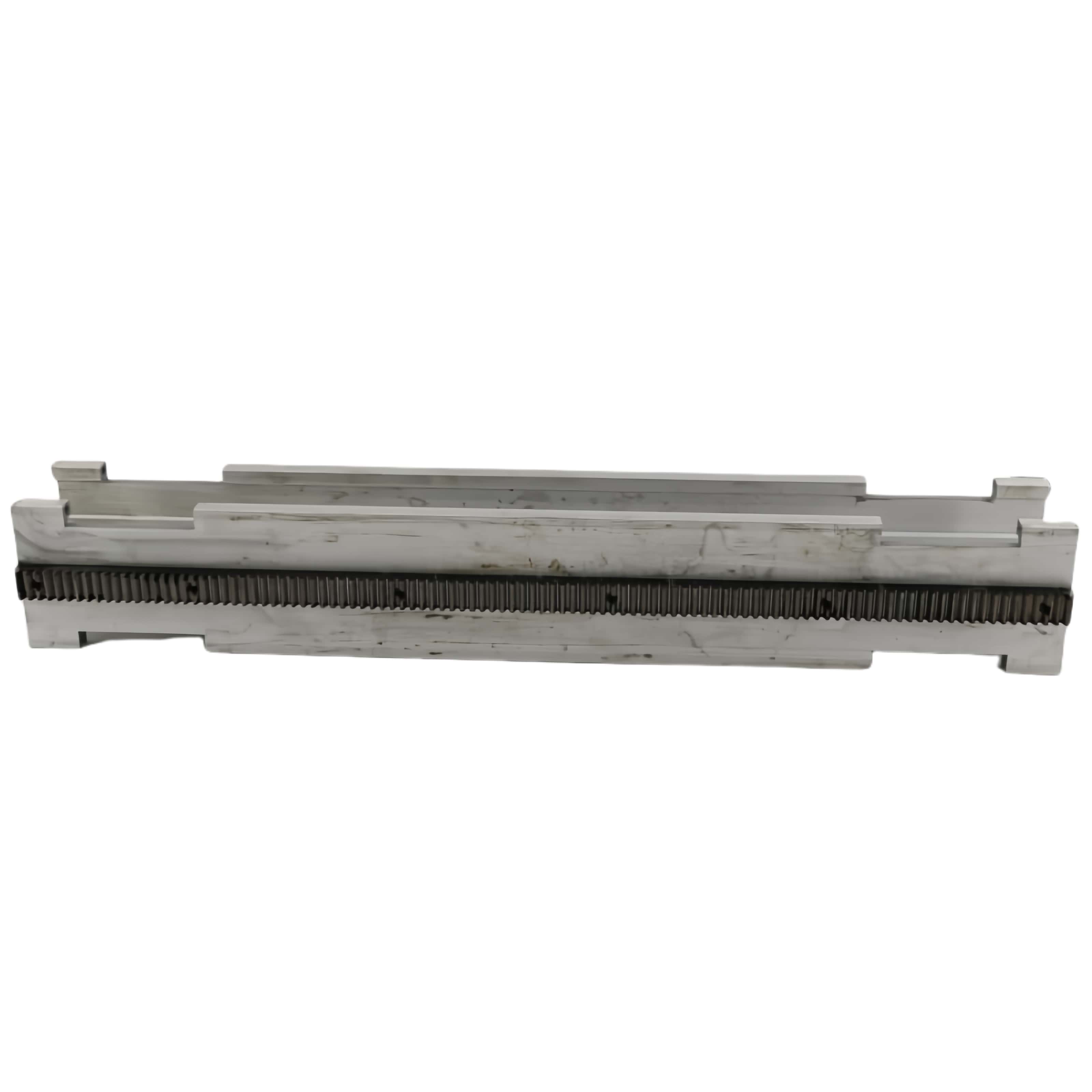

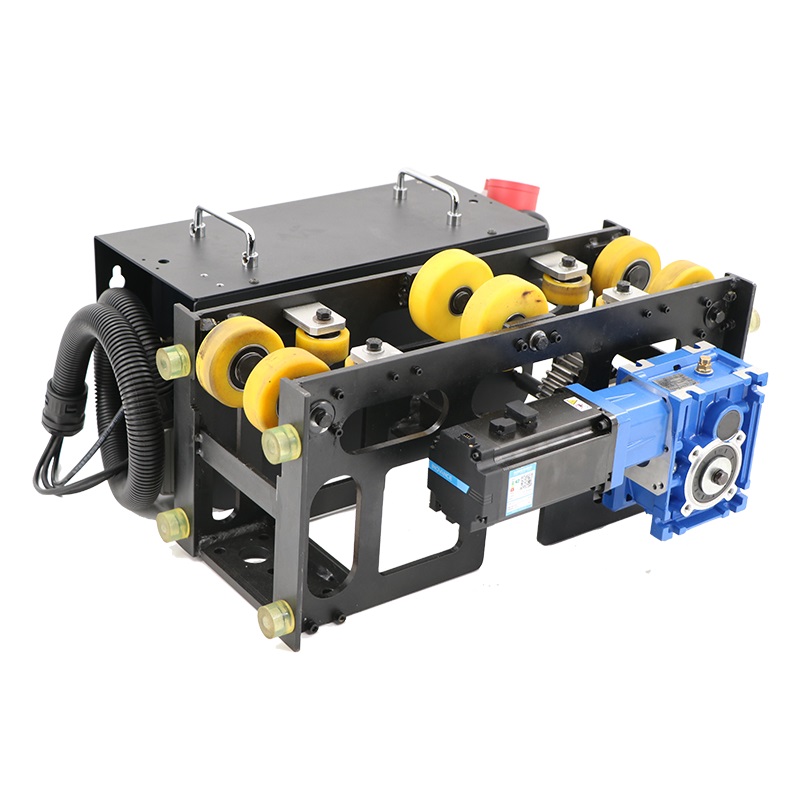

The modular sliding track system is an efficient solution designed by YZ DITECH specifically for stage machinery, dynamic exhibition displays, and film special effects scenes. This system consists of three parts: the Power Trolley, the Slave Trolley, and Customized Track. It deeply integrates an intelligent control system to achieve high-precision positioning and synchronized control of multiple Power Trolleys. The system employs an electromechanical design, featuring high precision, high reliability, low noise, and easy installation, making it suitable for various complex application scenarios. Core Technical Parameters Parameter Item Technical Index Implementation Method Positioning Accuracy ±0.3mm (any position) Absolute servo motor + cam reducer + gear transmission Repeat Positioning Accuracy ±0.1mm Real-time feedback Maximum Operating Speed 2m/s (adjustable) Vector control algorithm Synchronization Accuracy ≤±0.5mm (multi-vehicle formation) EtherCAT real-time bus Key Features ✔ High-Precision Movement - For smooth LED screen positioning✔ Heavy-Duty Performance - 1100kg capacity (22000kg pull load)✔ Seamless Integration - Works with servo hoists and truss systems

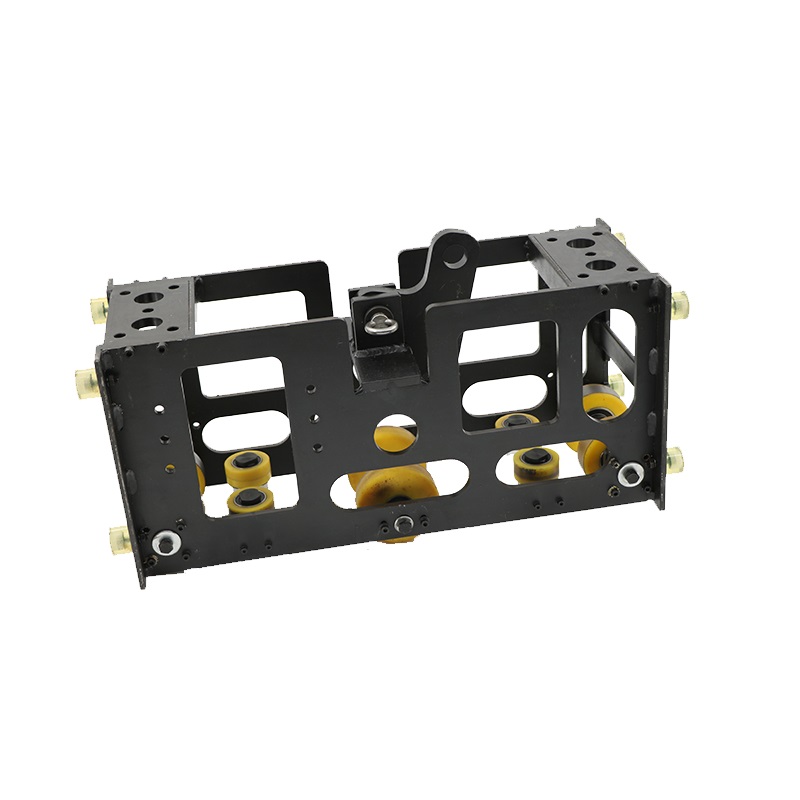

Slave Trolley (YQT-K03) Dimensions: 612×216×335 (mm) Weight: 30kg Load Capacity: 1100kg/set Configuration: Can be transformed into a power trolley when paired with an absolute value servo motor and a drive controller

The modular sliding track system is an efficient solution designed by YZ DITECH specifically for stage machinery, dynamic exhibition displays, and film special effects scenes. This system consists of three parts: the Power Trolley, the Slave Trolley, and Customized Track. It deeply integrates an intelligent control system to achieve high-precision positioning and synchronized control of multiple Power Trolleys. The system employs an electromechanical design, featuring high precision, high reliability, low noise, and easy installation, making it suitable for various complex application scenarios.

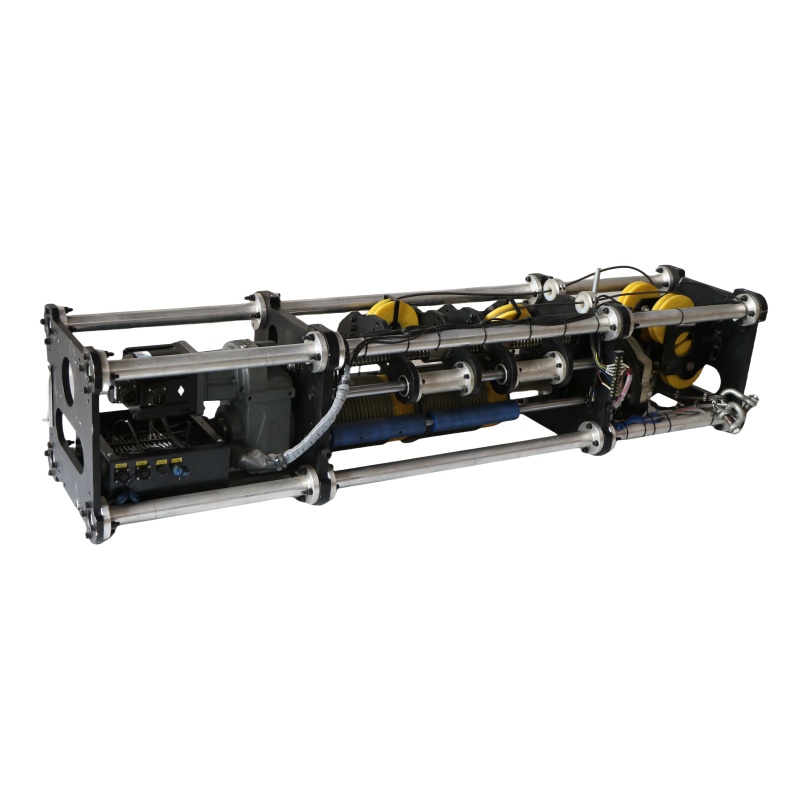

Category Specification Braking System Dual electromagnetic brakes (redundant backup) Motor AC Absolute Encoder Servo Motor Control System BW-Console & Main Controller Rope System 12:1 safety factor steel cables + anti-tangle device Installation Compatible with standard trusses (mobile & permanent) Load Monitoring Integrated load cells (GB/T 36731-2018 compliant)

Key Features Category Specification Safety • Encoder positioning• Anti-collision sensors• Travel limit switches Mobility • Wheels + fixed feet• Easy disassembly for transport Performance • Long lift distance (max 4m, customizable)• Voltage input AC 3 phase 380V Design Modular units combine for custom stage shapes

Key Features Category Specification Safety • Encoder positioning• Anti-collision sensors• Travel limit switches Mobility • Wheels + fixed feet• Easy disassembly for transport Performance • Long lift distance (max 4m, customizable)• Voltage input AC 3 phase 380V Design Modular units combine for custom stage shapes

AC servo drive system High precision. Support Cue, timeline. Synchronize work lighting, video, etc. Diameter from 2m to 12m
