Stage Automation Drive Controller & Servo Motor Kit

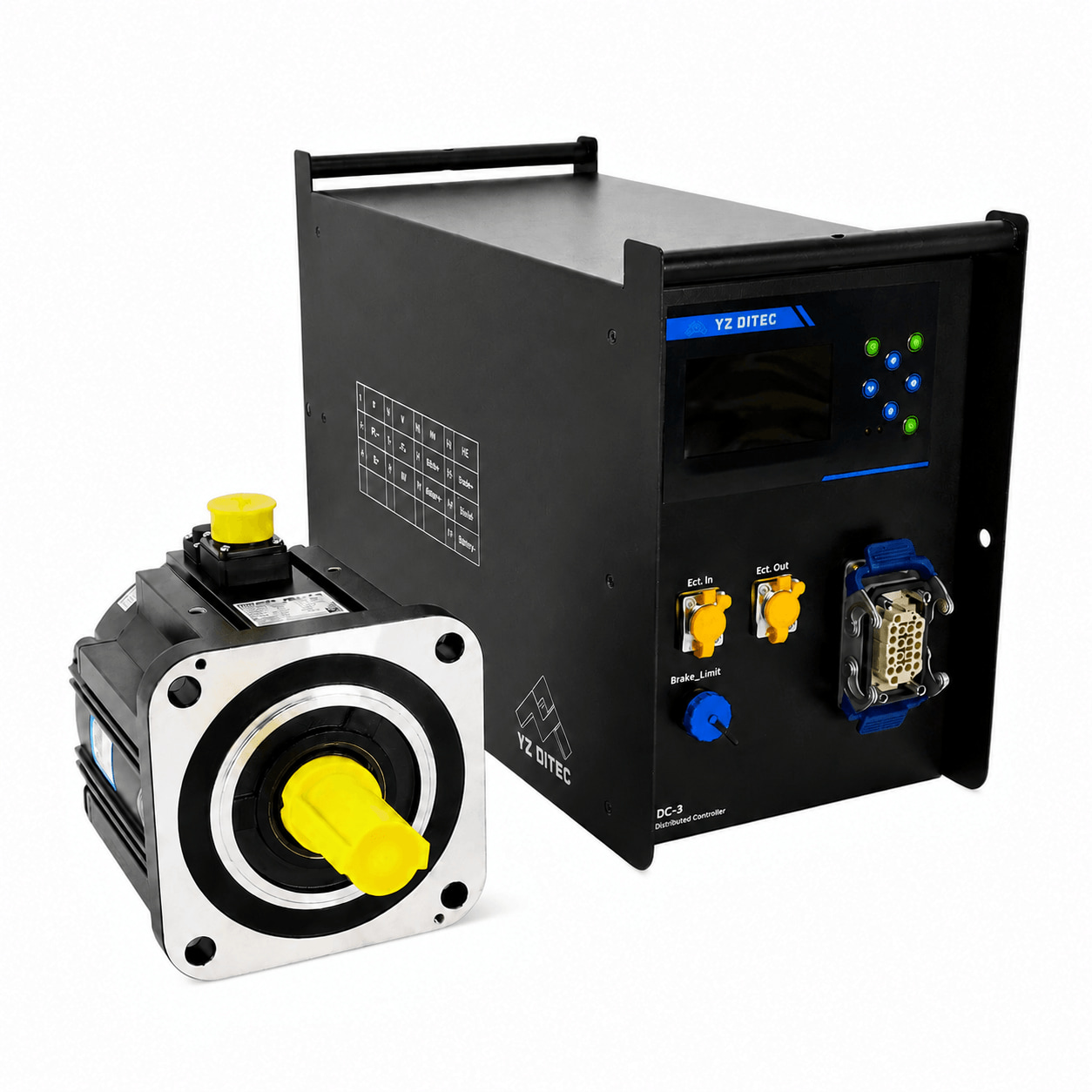

BW Servo Drive & Motor Kit

Product Overview
The BW-DC Servo Drive System is YZDITEC's purpose-built servo solution for professional stage automation — combining the BW-DC Drive Controller with a matched servo motor into a single, deployment-ready kit.
The BW-DC Drive Controller is the intelligent motion unit of the Black Warrior System: it manages real-time closed-loop servo control, dual-redundant brake circuits, quadruple limit protection, and EtherCAT synchronisation across every connected axis. Paired with a high-performance servo motor featuring a 23-bit absolute encoder, the system delivers sub-millimetre positioning accuracy across hoists, track trolleys, lift stages, and any custom-fabricated stage rig — new builds and retrofits alike.
Available in five drive ratings: 1.3 kW / 1.8 kW / 2.9 kW / 4.4 kW / 5.5 kW / 7.5 kW

▸ The control and power core for custom-built stage machinery.

▸ Engineered for bespoke installations. Plug in and perform.

▸ Native integration with the Black Warrior Control System.

▸ Retrofit without re-rigging — swap the motor and drive; the frame, gearbox, and rigging hardware stay.

▸ Absolute encoder — position retained through power-down; no re-homing at the next power-up.

▸ Vibration suppression + inertia auto-tuning — quiet, stable motion under varying mechanical loads.

▸ On-unit commissioning — origin setting, jog, direction config, and alarm diagnostics on the local panel.

▸ 1.3 kW to 7.5 kW, one platform — hoists, track trolleys, LED screen systems, lift stages; standardised spares across your entire fleet.

Inquire Now

Product categories

New Products

Product Details

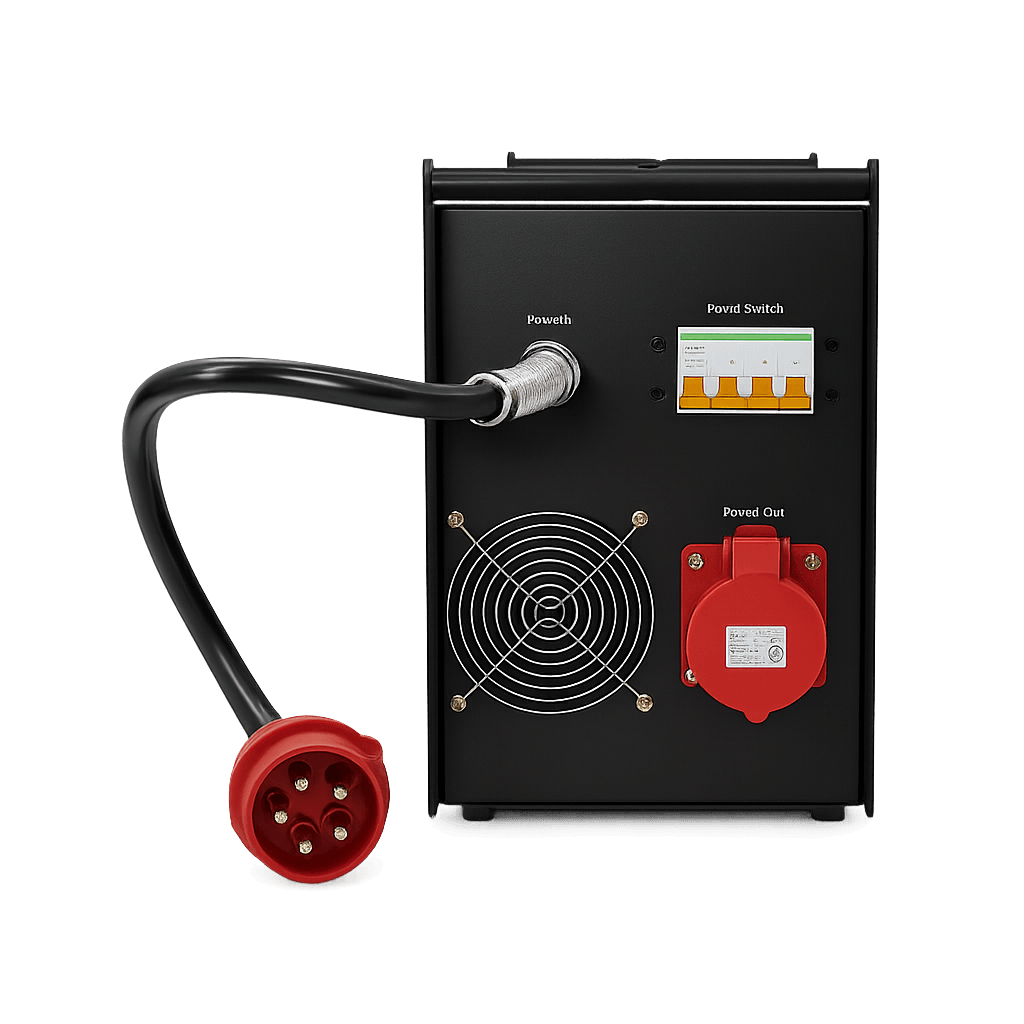

BW-DC Drive Controller
Category	Specification
Power Input	AC 380 V ±10%, 50–60 Hz
Positioning Accuracy	±0.1 mm repeatable
Response Bandwidth	3 kHz
Communication	EtherCAT (125 μs sync cycle)
Emergency Stop	Category 0 & Category 1 (IEC 60204-1)
Safety Architecture	Triple-redundant: hardware limits + software limits + main controller watchdog
Brake Control	Dual redundant brake circuits
Limit Protection	Software limits / hardware over-travel limits / E-stop limits / load cell overload
Local Panel Functions	Origin setting, jog forward/reverse, motor direction config, alarm diagnostics, joystick port
Thermal Monitoring	Built-in temperature tracking with remote alert
Interfaces	EtherCAT ×2, load cell connector, remote control connector, aviation plug set (male+female), safety power switch, heavy-duty connector, E-stop chain
Operating Temperature	0 °C to 50 °C
Ecosystem	Native unit in the Black Warrior System; pairs with BW-MC Master Controller and Pando 3D software

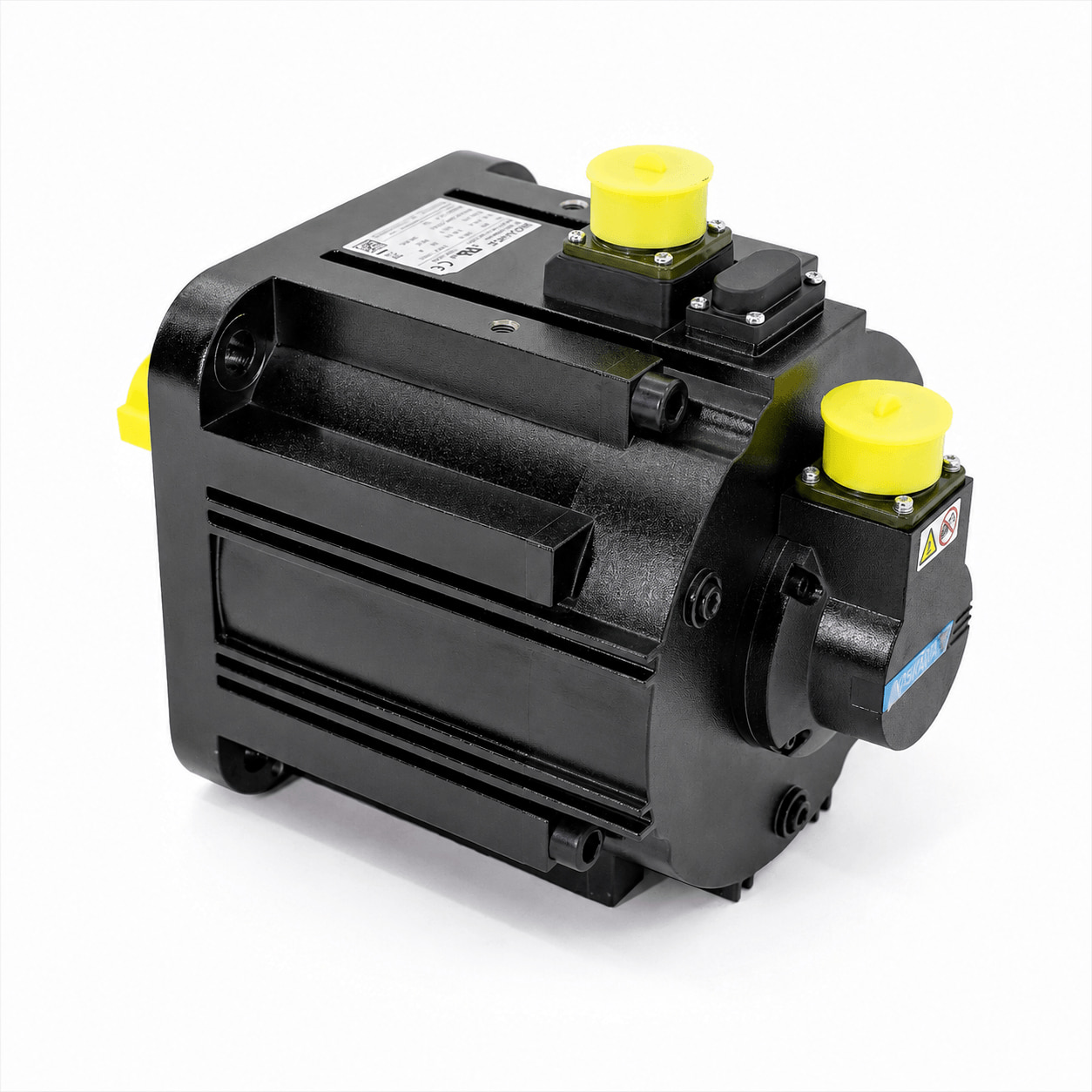

Servo Motor (Bundled)
Category	Specification
Encoder Type	23-bit absolute rotary encoder (8,388,608 ppr)
Communication Protocol	EtherCAT
Available Power Ratings	1.3 kW / 1.8 kW / 2.9 kW / 4.4 kW / 5.5 kW / 7.5 kW

Compatible Applications
Servo chain hoists — new installation or retrofit upgrade from conventional motor+encoder
Motorized track trolley active carrier units
Kinetic LED screen systems (linear traverse and rotary tilt axes)
Servo-electric lift stages and scissor platforms
Custom bespoke stage automation rigs requiring distributed drive units


Integration
The BW-DC Servo Drive System is a native unit in the Black Warrior System. It connects directly to the BW-MC Servo Master Controller via EtherCAT ring topology and is fully addressable within Pando 3D simulation software for pre-visualisation and cue programming. No third-party protocol bridges. No additional configuration layers.


Drive rating selection guidance and mechanical interface customisation available on request. Contact YZDITEC for application-specific configuration.
