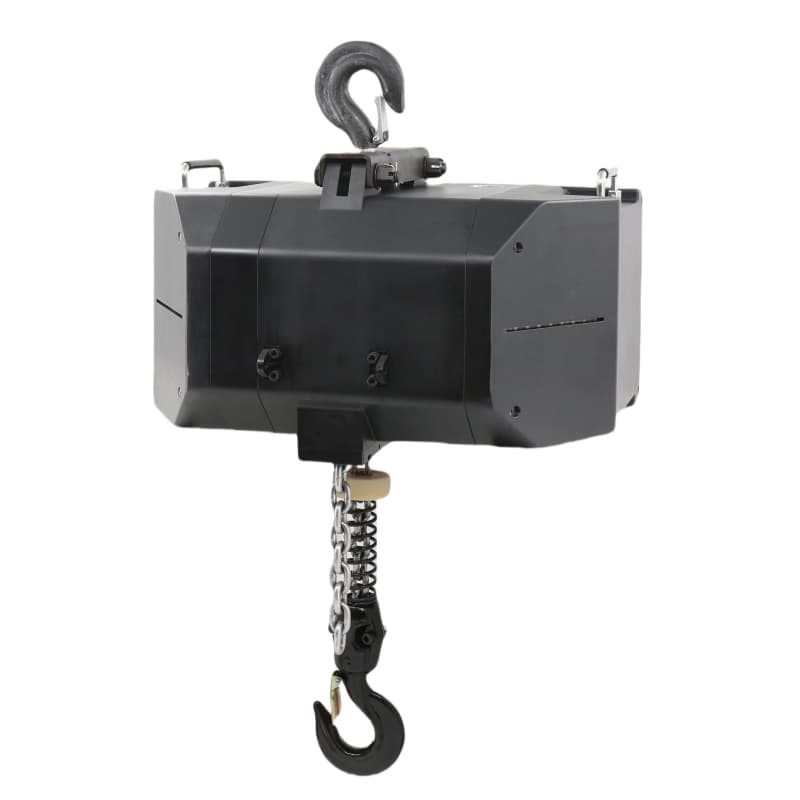

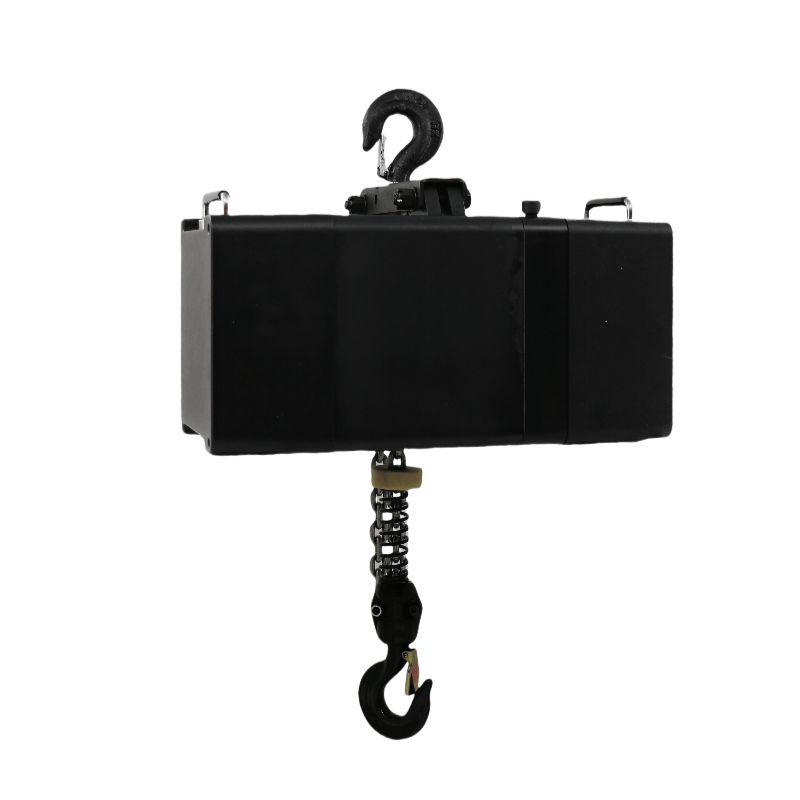

C1 Servo Hoist - Precision Lifting for Stage Dynamic Performances

  The C1 Servo Hoist is a BGV-C1, EN 17206 and SIL3-compliant precision hoist built for demanding stages and live venues. Safety configuration: Dual electromagnetic brakes, Category 0/1 E-stop, integrated load cell, 4-point limit switches, IP65 protection, absolute encoders and position memory after power loss. Precision & control: ±1 mm positioning with fast closed-loop response and reliable position hold. Motion & acoustics: Ultra-smooth motion (25–42 m/min), adjustable speed 0.01–0.5 m/s, zero-speed hover and low noise (~68 dB). Strength & reliability: FEC G80 chain (12:1 safety) for high load strength. Paired with EtherCAT plug-and-play and Black Warrior (BW-Console + Pando 3D), it enables rapid setup and flawless synchronization of automated scenic systems — motorized props and stage modules, LED screens/video walls, motorized track and stage systems, lighting trusses, and performer flying systems — ideal for exhibitions, theaters, TV, concerts, clubs and touring shows. Core Specifications Type Servo-controlled hoist 500kg Chain Japan FEC (25m length) Voltage AC 380V 3-phase Control BW-Console + Pando 3D simulation

Precision Motion Controller for Stage Automation Product Overview The BW-DC Drive Controller is a high-performance motion control unit of the Black Warrior System, engineered by YZ DITEC for professional stage machinery. Designed to pair with the BW-MC Servo Main Controller (stage automation central processor), it delivers: Multi-axis precision control for servo hoists/winches Rapid deployment and scalable configurations for rental markets Real-time monitoring of absolute encoder servo motor Key Features Performance Safety & Control ✔ Flexible Layout: Controls multiple execution units with synchronized motion ✔ Triple-Layered Safety: Combines hardware, software, and main controller safeguards ✔ High Precision: Sub-millimeter positioning accuracy for smooth automation ✔ Built-in Safety Module: Overload protection, dual brake control, limit detection ✔ Real-Time Data: Continuous feedback on motor position, speed, and torque ✔ Panel Configuration: Local motor parameter setup and status monitoring
