| Category | Specification |
|---|---|
| Safety | • Encoder positioning • Anti-collision sensors • Travel limit switches |
| Mobility | • Wheels + fixed feet • Easy disassembly for transport |
| Performance | • Long lift distance (max 4m, customizable) • Voltage input AC 3 phase 380V |

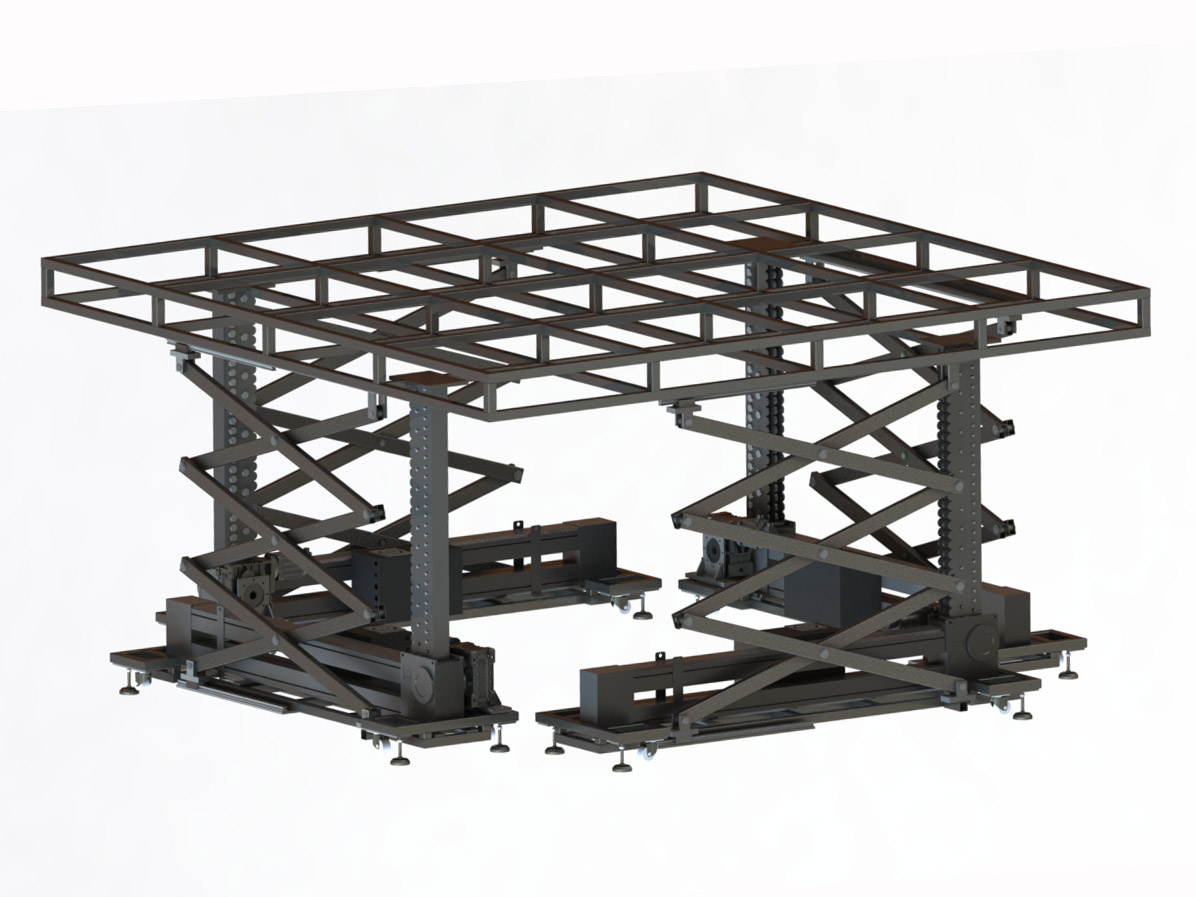

| Design | Modular units combine for custom stage shapes |
| Parameter | Specification | Standard |
|---|---|---|
| Drive System | AC Servo (2.9kW) | Q/YZKJ001-2023 |
| Load Capacity | 450kg | WH/T36-2009 |
| Speed | 0.3m/s (adjustable) | EN 17206 |
| Travel | 4m | |
| Control system | BW- Console + Main Controller | YZ DITEC Servo system |
| Power Supply | 3-phase 380V, 50/60Hz | |
| Unit Dimensions | 2600×700×600mm (L×W×H) | |
| Unit Weight | 350kg |
System Capabilities:
✔ Flexible Configuration

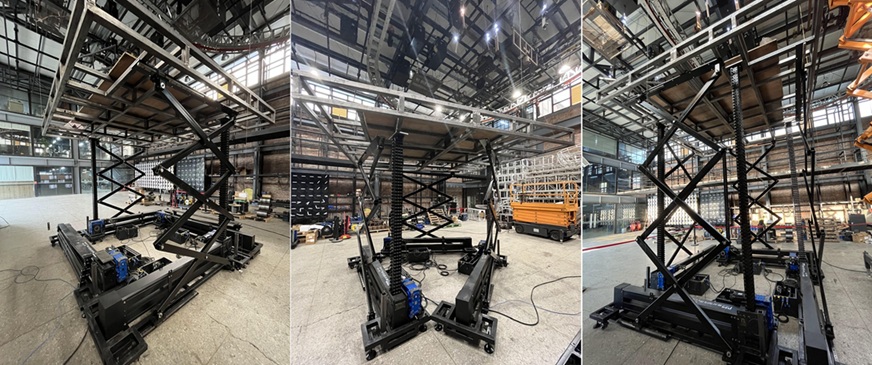

Combine multiple units for larger platforms
Create custom shapes (L/T/U configurations)
✔ Smart Control
Individual or synchronized operation
Programmable movement sequences
✔ Certified Safety
Meets Chinese (WH/T36) and European (EN17206) standards
Redundant braking system
Key Features Category Specification Safety • Encoder positioning• Anti-collision sensors• Travel limit switches Mobility • Wheels + fixed feet• Easy disassembly for transport Performance • Long lift distance (max 4m, customizable)• Voltage input AC 3 phase 380V Design Modular units combine for custom stage shapes
Details
Key Features Category Specification Safety • Encoder positioning• Anti-collision sensors• Travel limit switches Mobility • Wheels + fixed feet• Easy disassembly for transport Performance • Long lift distance (max 4m, customizable)• Voltage input AC 3 phase 380V Design Modular units combine for custom stage shapes
Details
