Slave Trolley (YQT-K03)
Features
Application Scenarios
(1) Large Stage Performances
The modular sliding trolley is suitable for various large stage performances, such as concerts, operas, and dance dramas. Its high precision positioning and multi-trolley formation synchronization capabilities can achieve complex stage movements, providing the audience with a stunning visual experience.
(2) Dynamic Exhibition Display
In the exhibition field, this system can be used for dynamic displays, showcasing large exhibits and complex backdrops. Its flexible modular design and strong load capacity can quickly adapt to different exhibition needs, enhancing the appeal and interactivity of the exhibition.
(3) Film and Television Special Effects Scenes
In film production, the modular stage moving track cart system can be used for the construction and filming of special effects scenes. Its high precision control and low noise design can meet the high requirements for scenes in film shooting, providing strong technical support for special effects production.

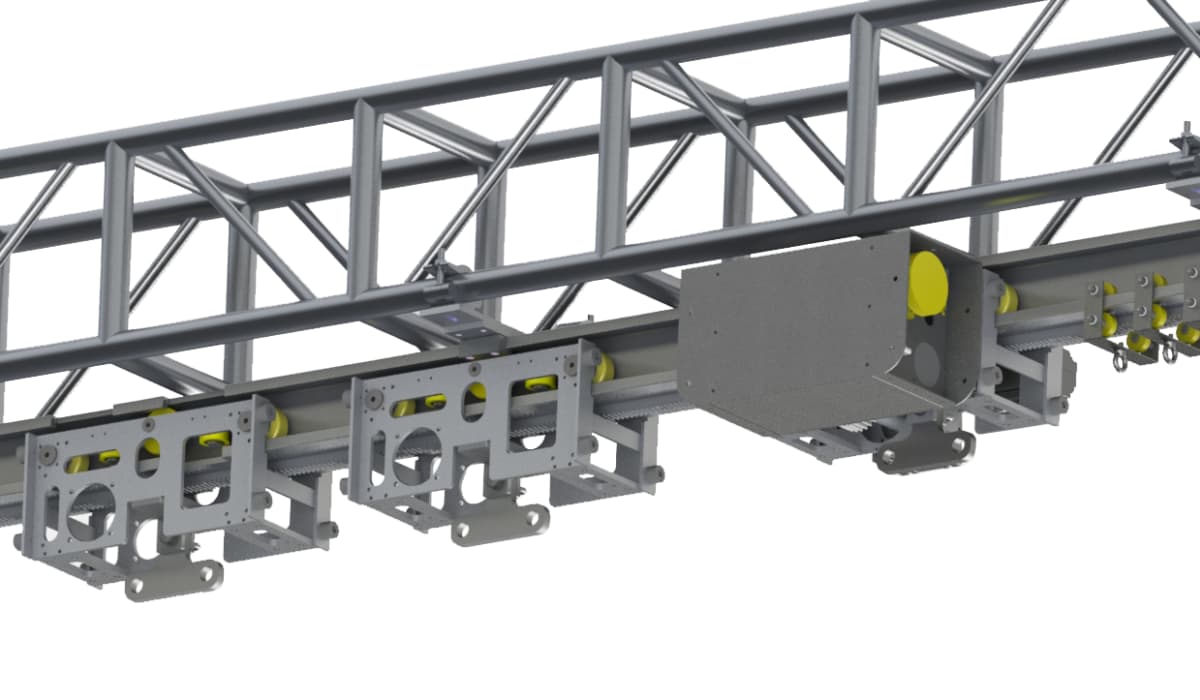

The modular sliding track system is an efficient solution designed by YZ DITECH specifically for stage machinery, dynamic exhibition displays, and film special effects scenes. This system consists of three parts: the Power Trolley, the Slave Trolley, and Customized Track. It deeply integrates an intelligent control system to achieve high-precision positioning and synchronized control of multiple Power Trolleys. The system employs an electromechanical design, featuring high precision, high reliability, low noise, and easy installation, making it suitable for various complex application scenarios. Core Technical Parameters Parameter Item Technical Index Implementation Method Positioning Accuracy ±0.3mm (any position) Absolute servo motor + cam reducer + gear transmission Repeat Positioning Accuracy ±0.1mm Real-time feedback Maximum Operating Speed 2m/s (adjustable) Vector control algorithm Synchronization Accuracy ≤±0.5mm (multi-vehicle formation) EtherCAT real-time bus Key Features ✔ High-Precision Movement - For smooth LED screen positioning✔ Heavy-Duty Performance - 1100kg capacity (22000kg pull load)✔ Seamless Integration - Works with servo hoists and truss systems
Details

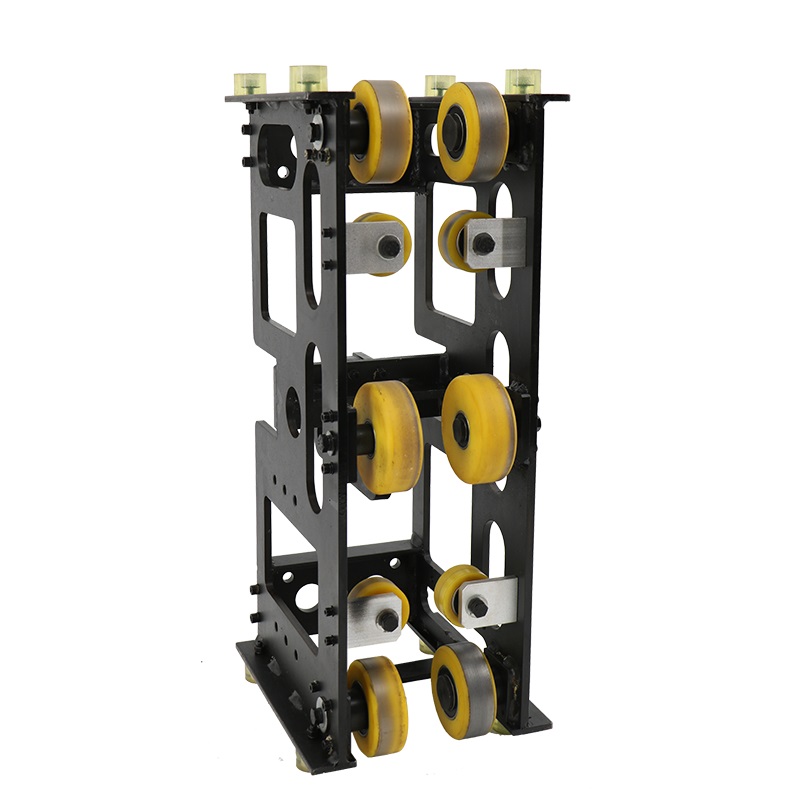

Slave Trolley (YQT-K03) Dimensions: 612×216×335 (mm) Weight: 30kg Load Capacity: 1100kg/set Configuration: Can be transformed into a power trolley when paired with an absolute value servo motor and a drive controller
Details
The modular sliding track system is an efficient solution designed by YZ DITECH specifically for stage machinery, dynamic exhibition displays, and film special effects scenes. This system consists of three parts: the Power Trolley, the Slave Trolley, and Customized Track. It deeply integrates an intelligent control system to achieve high-precision positioning and synchronized control of multiple Power Trolleys. The system employs an electromechanical design, featuring high precision, high reliability, low noise, and easy installation, making it suitable for various complex application scenarios.
Details

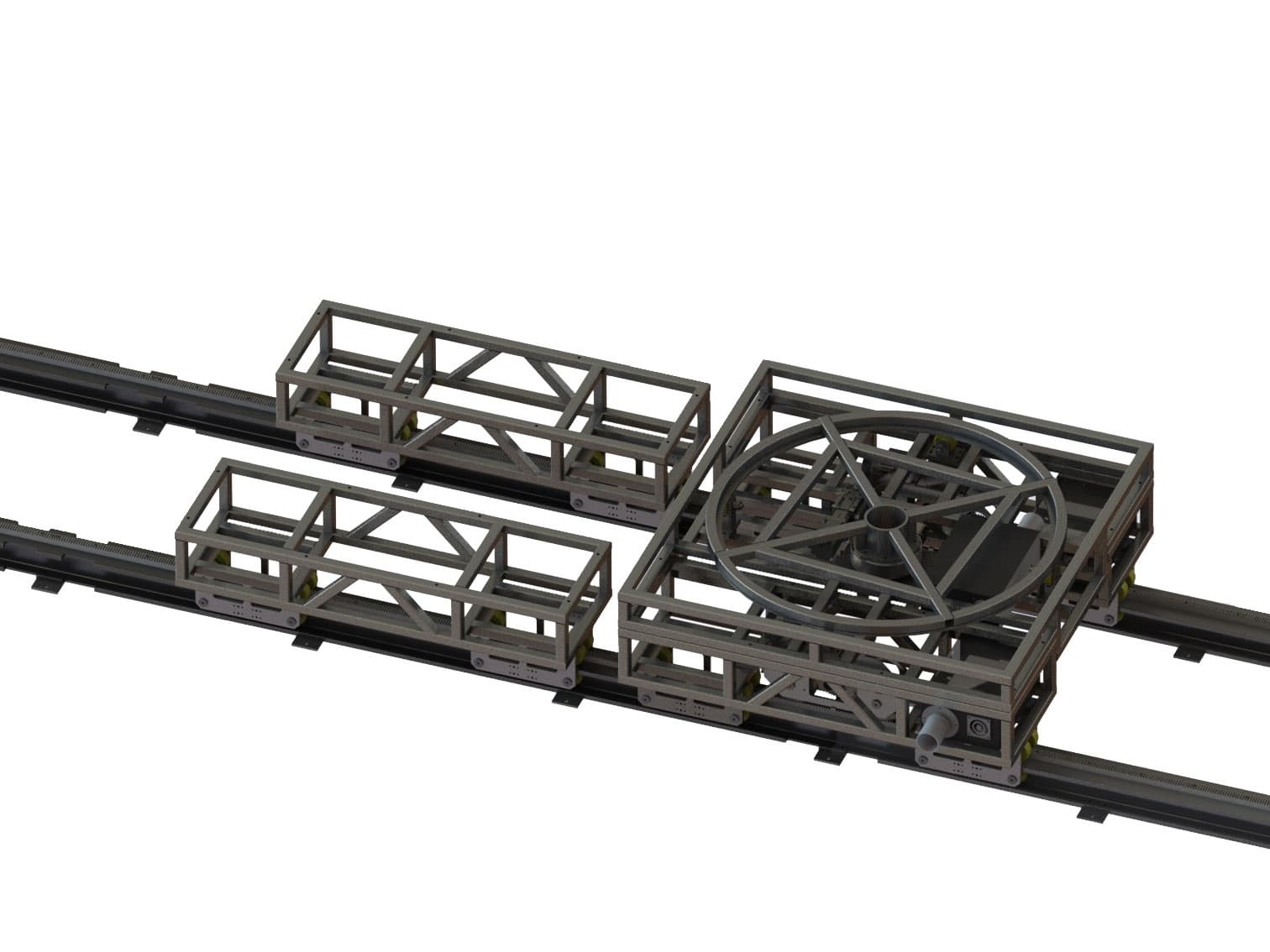

Combined Stage Automation System Double Track Power Trolley: Servo Motor, 1.0kw Slave Trolley Load: 800kg Pull Load: 2000kg Rotation: Servo Motor, 1.0kw
Details
