| Parameter | Specification |
|---|---|
| Diameter Range | 2m – 12m (customizable) |
| Max Speed | 2 RPM (adjustable) |
| Load Capacity | 250 kg/m² |
| Precision | ±0.5mm positioning accuracy |
| Control | Programmable via timeline/keyframe |
| Speed Control | 0.01–2 RPM (smooth acceleration profiles) |
Engineered for Absolute Positioning Accuracy

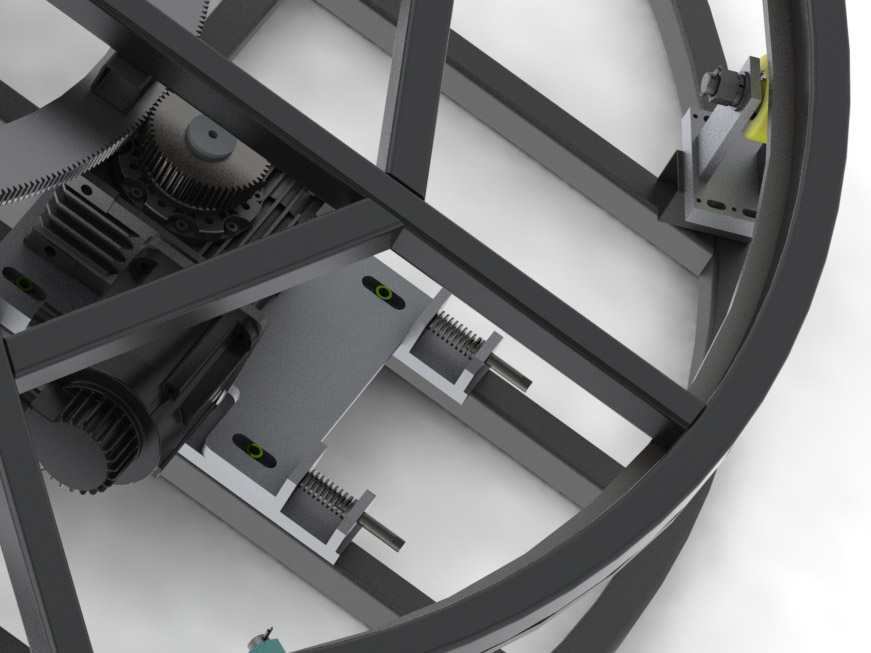

Component Specifications:
| Part | Specification | Benefit |
|---|---|---|
| Helical Gears | 20CrMnTi alloy, HRC58-62 hardness | 50% quieter than spur gears |
| Ground Racks | DIN 6 standard, 0.05mm/m accuracy | Eliminates cumulative error |
| Preload Couplings | Zero-backlash (<0.01mm) | Ensures immediate response |
Parameter Specification Drive System AC Servo Motor + Precision Reducer Load Capacity Up to 1,500kg (car + display structure) Rotation Speed 0.1-1 RPM (programmable) Positioning ±1mm accuracy with absolute encoder Sync Technology Genlock timecode for video/lighting Control Timeline programming with 3D preview Structure Aircraft-grade steel frame
