Stage Mechanic Control System - Black Warrior System

Black Warrior System, developed by YZ DITEC, provides a comprehensive stage mechanic solution to control various stage elements which drive by servo motor with absolute encoder.

The Black Warrior System is a NEW CNC solution for servo motor machine, involves employing the precise and programmable motion capabilities of servo motors to automate and control various stage elements in one system.

              As a digital CNC control system, the Black-Warrior System integrates functions such as control, early warning, and safety. It ensures smooth operation with millimeter-level precision, even during complex geometric movements.

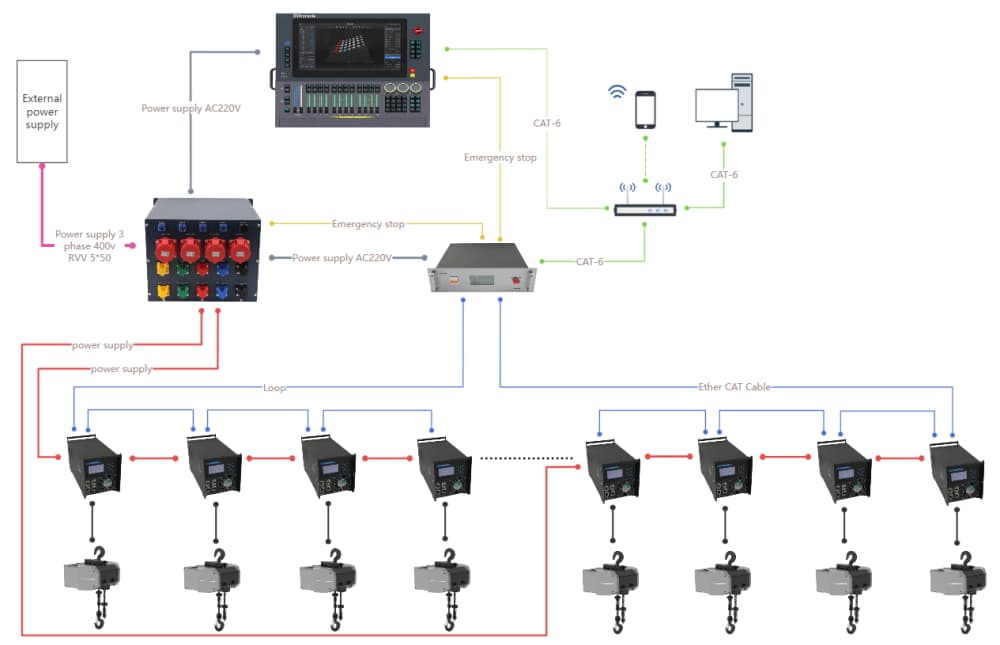

The Black Warrior System, typically comprises several integrated components to ensure smooth operation and control of stage elements during stage show performances or events. These components include the control system and drive machine. The control system includes Pando Software, BW-console, BW-MC, and BW-DC, and the drive machine include the stage mechanic drive by servo motor with absolute encoder.

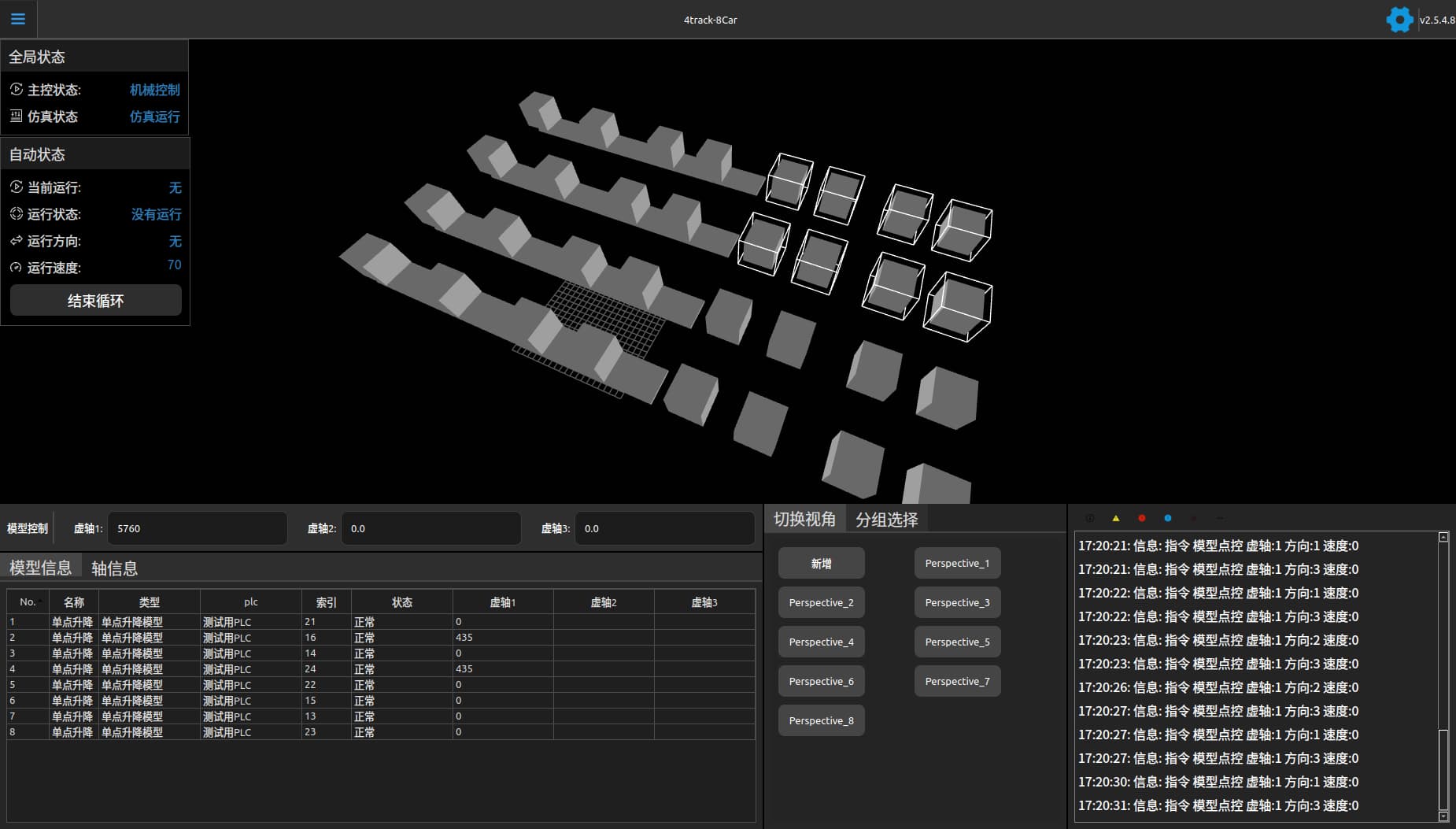

Pando Software: A 3D simulation control software, provide offline simulation & 3D preview for stage show programming. This software enables operators to visualize and plan stage movements in a virtual environment before execution. It provides a realistic simulation of the stage setup, helping to identify potential issues and optimize performance sequences. What You See Is What You Get.

BW-console: An intelligent stage control console, serving as the central operation platform. BW-console is the control interface where operators can program, manage and execute stage movements and effects. It acts as the command center for the system, allowing precise adjustments and coordination with Linux operating system. The built-in Pando Software and touch screen make programming more intuitive and user-friendly, streamlining the process significantly.

BW-MC: Main control controller, is Central Control Unit of the Black Warrior System. The BW-MC serves as the intermediary between the stage console and the driver units. Equipped with a built-in safety control module, working in conjunction with the console and sub-control units to provide triple-layered operational safety assurance. BW-MC supports up to 128-loop network grouping, offering redundant connections and reliable transmission.

BW-DC: Drive Controller, the execution Units of the Main Controller. The BW-DC ensure a safe, stable, smooth, and synchronized drive system. Incorporating technology such as real-time monitoring systems, and precision control algorithms to enhance stage mechanic’s performance and reliability. Together with the software and main controller, it provides triple-layered operational safety assurance.

The execution unit of the Black Warrior System, is the stage mechanic drive by servo motor with absolute encoder. These are the physical mechanisms that carry out the commands, such as motors, winches, hoists, and other machinery, which are drive by servo motor with absolute encoder. They are responsible for stage motion like lifting, swing, sliding, and rotating.

Additionally, these components of all the Black Warrior System ensure that stage mechanics operate seamlessly, allowing for dynamic and creative performances while maintaining safety and precision.
