Automated Sliding LED Wall Series

A modular family of motorized LED-wall solutions for touring, concerts, theatre and fixed installs.

• Drive & feedback — Absolute-feedback servo motors with application-matched reducers (worm or hypoid) for high holding torque, low backlash and stable closed-loop positioning.

• Structure & guidance — Precision guide rails (linear, curved or I-beam) on rugged steel frames or aluminium truss; selection based on stiffness/weight trade-offs.

• Performance — Repeatable, quiet motion for live events; nominal translational speeds and payloads engineered per configuration.

• Customization & safety — Track geometry and load capacity tailored to site/rigging; final ratings, acceleration limits and safety margins validated by project-specific engineering.

• Control integration — Plug-and-play with the Black Warrior Control System and standard production consoles for deterministic, time-coded cueing and synchronized show automation.

Inquire Now

Product categories

New Products

Product Details

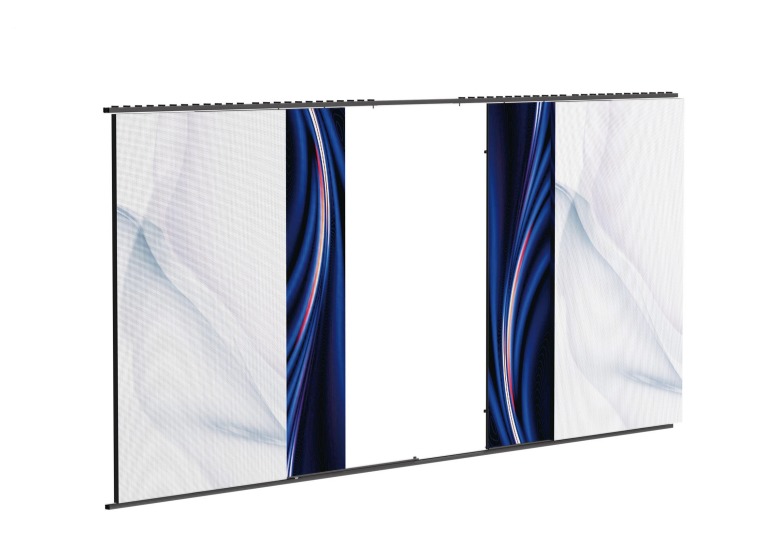

Motorized Center-Opening LED Wall

• Drive: Absolute-feedback servo motor with worm-gear reducer

• Load capacity: Operational payload 500 kg; maximum determined per configuration

• Max speed: 0.2 m/s

• Structure: Linear guide rails with steel frame

• Motion: Open/close linear translation

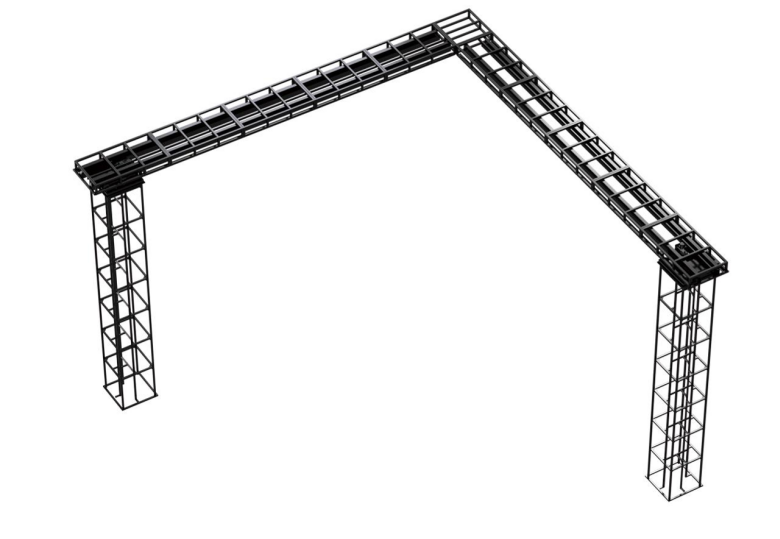

Motorized Track Lighting Truss

• Drive: Absolute-feedback servo motor with worm-gear reducer

• Load capacity: Operational payload 900 kg; maximum determined per configuration

• Max speed: 0.3 m/s

• Structure: Steel-tube guide rails with aluminum truss subframe

• Motion: Lateral translation (open/close linear motion)

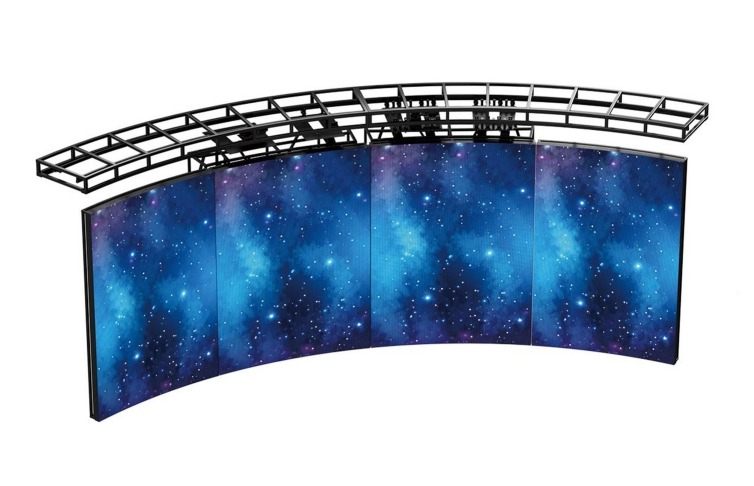

Curved Track Telescoping LED Wall

• Drive: Absolute-feedback servo motor with hypoid gear reducer

• Load capacity: Operational payload 540 kg; maximum determined per configuration

• Max speed: Translation 0.2 m/s; telescopic extension/retraction 0.1 m/s

• Structure: Steel curved guide rails with steel frame

• Motion: Lateral translation + telescopic extension/retraction

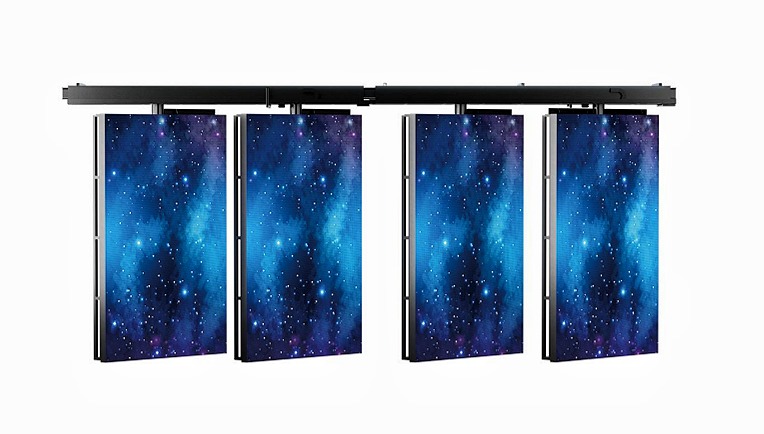

Motorized Sliding & Rotating LED Wall

• Drive: Absolute-feedback servo motor with worm-gear reducer

• Load capacity: Operational payload 870 kg; maximum determined per configuration

• Max speed: Translation 0.2 m/s; rotation 3 rpm

• Structure: Linear guide rails with steel frame

• Motion: Lateral translation + rotation

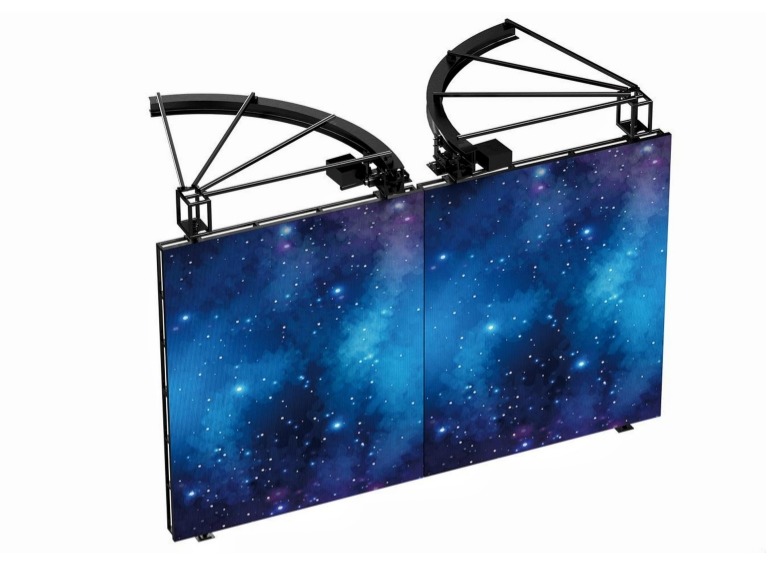

Motorized Pivoting LED Wall

• Drive: Absolute-feedback servo motor with hypoid gear reducer

• Load capacity: Operational payload 800 kg; maximum determined per configuration

• Max speed: 9'/s

• Structure: I-beam guide rails with steel frame and rotating shaft

• Motion: Rotation
