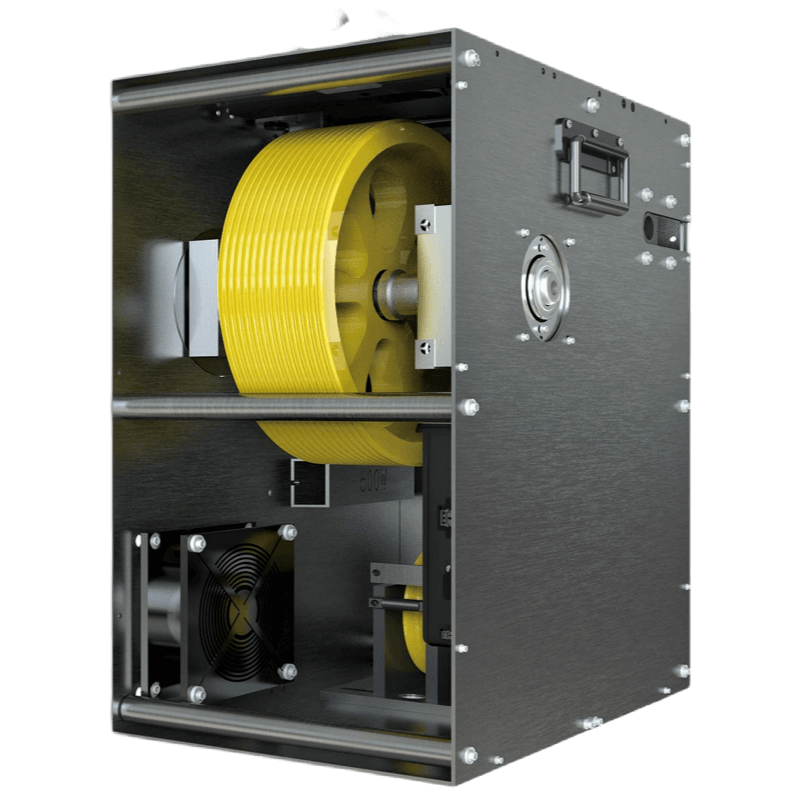

15kg Servo Stage Winch

Category Specification Braking System Dual electromagnetic brakes (redundant backup) Motor AC Absolute Encoder Servo Motor Control System BW-Console & Main Controller Rope System 12:1 safety factor steel cables + anti-tangle device Installation Compatible with standard trusses (mobile & permanent) Load Monitoring Integrated load cells (GB/T 36731-2018 compliant)

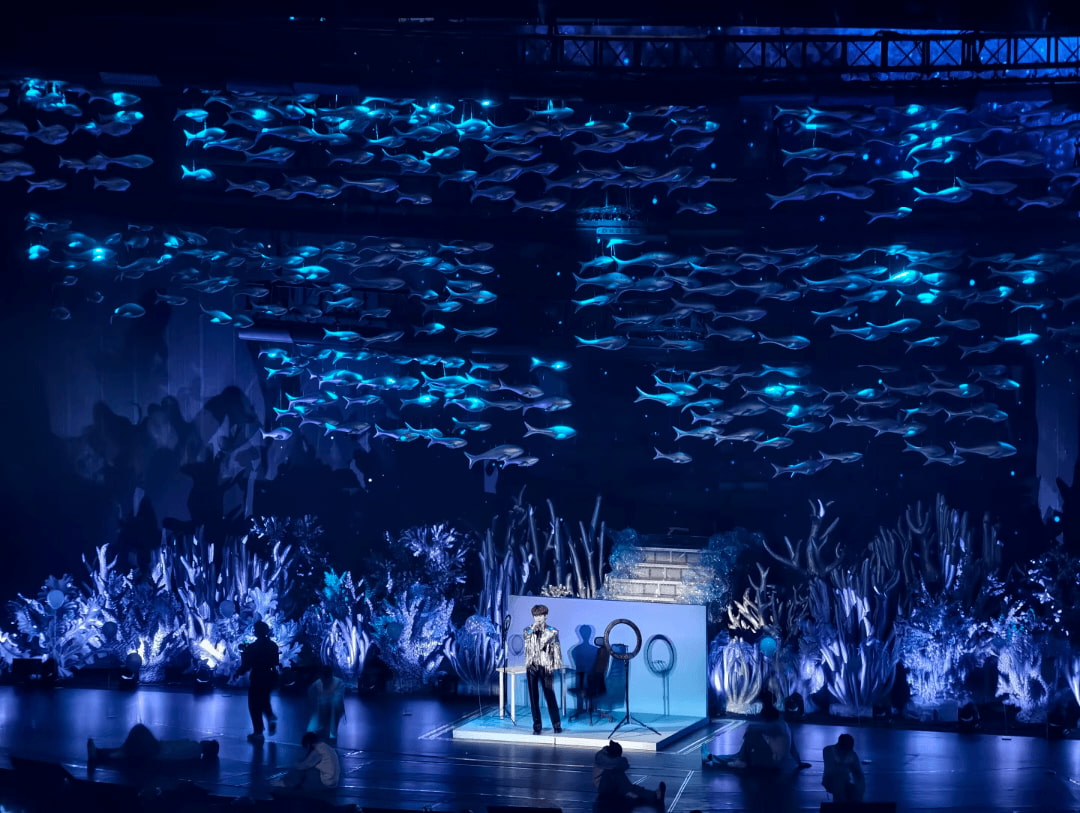

In live production, speed defines the art. Our 50kg stage winch delivers 0.65 m/s lifting speed over an 8 m stroke — light, swift, and precisely repeatable for luminaires, LED screens, and suspended scenic equipment. Speed & Precision Closed-loop EtherCAT control with ring-topology redundancy achieves < 1 mm synchronization error, enabling frame-accurate multi-axis choreography at scale. Safety, Layered Dual mechanical brakes · forced self-locking · dynamic torque slack-rope monitoring · load detection · emergency brake — independent redundant protection at every level. Integrated. Simplified. Composite cable unifies power and control in a single run with a high structural safety margin. Faster. Lighter. Stronger. Fully compatible with our intelligent stage control system — up to 256 axes synchronized via EtherCAT, enabling kinetic motion timed to lighting cues across concerts, touring productions, and large-scale live events.

Precision Motion Control for Demanding Environments Key Features 1. High-Performance Servo Drive Ultra-Precise Positioning (±1mm accuracy) Smooth Speed Control (0.01-0.27m/s adjustable) Instant Torque Response for heavy-load handling 2. Intelligent Curve Control Adaptive acceleration/deceleration Anti-sway algorithms for pendulum loads 4. Versatile Applications Club Installations: Silent operation for night venues Shopping Malls: Safe for public spaces with 24/7 monitoring Stage Machinery: Flying performers (up to 1000kg) Dynamic set movements

Professional-Grade Flying System for Stage Performances System Overview A high-precision aerial performance system designed for professional theatrical and live events. Combines smooth vertical lifting and horizontal movement for dynamic stage effects. Available in three configurations — Fixed-Point, Linear Traverse, and Curved-Track — the system adapts to virtually any stage layout or creative brief. With a rated load capacity of 150 kg, servo-driven motion control, and a redundant dual electromagnetic braking system, it delivers the precision and reliability demanded by professional performer-flying applications.   Widely deployed across large-scale concerts, theatrical productions, theme-park shows, TV broadcast stages, and product-launch events, the system delivers a broad spectrum of dynamic aerial effects — from performer flying and aerial dance choreography to the precision movement of scenic elements, LED screen arrays, lighting rigs and props. Whether tracing straight, curved, or custom-radius paths, it enables creative directors to choreograph both human and scenic motion within a unified control framework. The low-noise drive mechanism ensures seamless integration into live and broadcast environments where acoustic performance is critical.

Precision-engineered for dynamic stage rigging. Powered by a 750 W servo motor with absolute encoder and SKM028B hypoid gearbox, it delivers a maximum vertical speed of 1.17 m/s with exceptional positioning repeatability.

Precision-engineered for lightweight scenic rigging. Powered by an 850 W servo motor with absolute encoder and RV075 worm gearbox, it delivers a maximum vertical speed of 0.78 m/s with reliable, repeatable vertical positioning for demanding production environments.

  500 kg intelligent stage lifting winch — precision, power, and perfect synchrony for live entertainment. Driven by an absolute-encoder AC servo motor with worm-gear reducer, this winch delivers a SWL of 500 kg across three selectable speed ratings — 0.27, 0.35, and 0.42 m/s — with motion modes ranging from synchronised level lift/lower to differential multi-point tilt, giving automation teams precise spatial orientation control over scenic elements and LED screens in concerts, theatrical productions, and touring shows.
